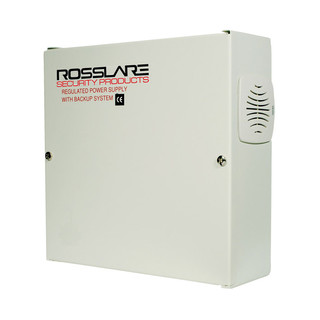

Rosslare PS-C25T Control Battery Backup & Power Supply

Used with the AC0052 and AC0053

Description

Features

  • Lock, tamper and chime signal with PS-25T
  • Used with the AC0052 and AC0053

Specifications

ELECTRICAL CHARACTERISTICS



Input Voltage:

230VAC/60 Hz, 0.14A

Transformer Output

16VAC/1.5A, 40VA Max.

Standby Current:

Depends on keypad type

OPERATIONAL CHARACTERISTICS



Battery Charger:

12V Sealed Lead Acid

Battery DC Input:

10 to 16 VDC -Current depends on attached devices.

Lock Strike Power:

12VDC constant voltage output / 1.2 A Current Limit

Lock Strike Relay:

5A Form-C, N.O / N.C

Alarm/Auxiliary Relay:

5A Form-C, N.O / N.C

Keypad Power:

12V DC regulated output / 300mA current limit.

Communications:

Proprietary Rosslare Secure Format – monitored for wire tamper.

Power LED

Red LED indicates connection to input voltage.

Sounder

Built-in 8 Ohm, 0.25W Speaker for door-bell, chime
and alarm sounds.

ENVIRONMENTAL CHARACTERISTICS



Operating Environment:

Indoor Use

Operating Temperature:

-10°C to 50°C (14°F to 122°F)

Operating Humidity:

0 to 95% (Non Condensing)

MECHANICAL CHARACTERISTICS



Dimensions:

22.5cm x 22cm x 8.2cm (8.86 x 8.66″ x 3.2″)

Weight:

2.45Kg (5.4 lbs)
