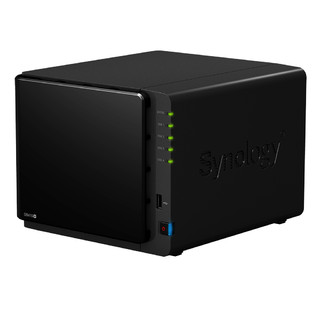

Synology SYN-DS415-PLUS Diskstation

4 Bay Desktop NAS

Description

Features

  • High-speed data transfer and hardware encryption engine
  • Dual LAN ports for failover and Link Aggregation support
  • Easy installation, hassle-free maintenance
  • USB 3.0 and eSATA ensure speedy transfers to external storage
  • Award winning OS – DiskStation Manager
  • Seamless storage solution for virtualization environments
  • Fit into business environments easily
  • Optimize storage management
  • The most compatible sharing
  • Effective backup solution
  • All-in-One server
  • Ensuring business continuity
  • Increase business productivity with cloud solutions
  • Secure your data
  • Eco-friendly NAS server

Specifications

CPU



CPU Model

INTEL Atom C2538

CPU Frequency

Quad Core 2.4 GHz

Floating Point

Yes

Hardware Encryption Engine (AES-NI)

Yes

Memory



System Memory

2 GB DDR3

Storage



Drive Bay(s)

4

Compatible Drive Type

  • 3.5″ SATA III / SATA II HDD
  • 2.5″ SATA III / SATA II HDD
  • 2.5″ SATA III / SATA II SSD

Maximum Internal Raw Capacity

32 TB (8 TB HDD X 4) (Capacity may vary by RAID types)

Hot Swappable Drive

Yes

External Ports



USB 2.0 Port

1

USB 3.0 Port

2

eSATA Port

1

File System



Internal Drives

EXT4

External Drives

  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+

Appearance



Size (Height X Width X Depth)

165 mm X 203 mm X 233.2 mm

Weight

2.05 kg

Others



RJ-45 1GbE LAN Port

2 (with Link Aggregation / Failover support)

Wake on LAN/WAN

Yes

System Fan

92 mm X 92 mm X 2 pcs

Fan Speed Mode

  • Cool Mode
  • Quiet Mode

Wireless Support (dongle)



Noise Level*

20.2 dB(A)

Power Recovery

Yes

Scheduled Power On/Off

Yes

Power Supply Unit / Adapter

100W

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 HZ, Single Phase

Power Consumption*

32.64 W (Access)
14.78 W (HDD Hibernation)

British Thermal Unit

111.37 BTU/hr (Access)
50.43 BTU/hr (HDD Hibernation)

Environment Temperature



Operating Temperature

5°C to 35°C (40°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

  • FCC Class B
  • CE Class B
  • BSMI Class B

Warranty

2 Years

Notes

Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

DSM Specifications



Storage Management



Maximum Single Volume Size

108 TB

Maximum Internal Volume Number

512

Maximum iSCSI Target Number

32

Maximum iSCSI LUN

256

iSCSI LUN Clone/Snapshot, Windows ODX

Yes

Supported RAID Type

  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10

RAID Migration

  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6

Volume Expansion with Larger HDDs

  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6

Volume Expansion by Adding a HDD

  • Synology Hybrid RAID
  • RAID 5
  • JBOD

Global Hot Spare Supported RAID Type

  • Synology Hybrid RAID
  • RAID 1
  • RAID 5

SSD Support



SSD Read/Write Cache

Yes

File Sharing Capacity



Maximum User Accounts

2048

Maximum Groups

256

Maximum Shared Folder

512

Maximum Shared Folder Sync Tasks

8

Maximum Concurrent CIFS/AFP/FTP Connections

512

Windows Access Control List (ACL) Integration

Yes

NFS Kerberos Authentication

Yes

High Availability Manager

Yes

Log Center

Yes

Syslog Events per Second

800

Virtualization



VMware vSphere 5 with VAAI

Yes

Windows Server 2012

Yes

Windows Server 2012 R2

Yes

Citrix Ready

Yes

Add-on Packages



Antivirus Essential

Yes

Antivirus by McAfee (Trial)

Yes

Audio Station

Yes

Central Management System

Yes

Cloud Station

Yes

Maximum Concurrent File Transfers

512

Cloud Sync

Yes

Directory Server

Yes

DNS Server

Yes

Download Station

Yes

Maximum Concurrent Download Tasks

80

Glacier Backup

Yes

HiDrive Backup

Yes

iTunes Server

Yes

Java Manager

Yes

Mail Server

Yes

Mail Station

Yes

Media Server

Yes

DLNA Certification

Yes

Note Station

Yes

Photo Station

Yes

RADIUS Server

Yes

Surveillance Station

Yes

Maximum IP cam (Licenses required)

40 (including 2 Free License)

Total FPS (H.264)

1200 FPS @ 720p (1280×800)
480 FPS @ 1080p (1920×1080)
250 FPS @ 3M (2048×1536)
200 FPS @ 5M (2591×1944)

Total FPS (MJPEG)

300 FPS @ 720p (1280×800)
150 FPS @ 1080p (1920×1080)
100 FPS @ 3M (2048×1536)
60 FPS @ 5M (2591×1944)

Time Backup

Yes

Maximum Task Number

8

Video Station

Yes

Video Transcoding

Group 1

VPN Server

Yes

Maximum Connections

20

Notes

Surveillance Station throughput is tested with Axis P1347 (H.264@1280×720@30FPS), using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. Recording video is saved every 5 minutes with the limit of archive folder up to 1GB.

Environment & Packaging



Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Welcome Note X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2

Optional Accessories

  • Remote
  • Camera License Pack
  • VS240HD
