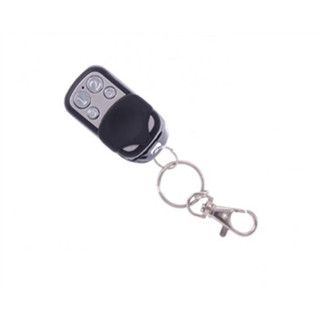

Microlatch ML-FOB4S1WH1 Keyfob
Posted on October 30th, 2015
4 Button Metal Slide 1 Weigand I/D and HID Tag
Description
Features
- 4 Button Metal Slide
- 1 Weigand I/D
- HID Tag
Specifications
| Operating Voltage |
12VDC |
| Battery Type |
12V 27A Alkaline cell x 1 |
| Current consumption |
42mA maximum transmitting |
| Physical Dimensions |
32mm (W) x 53mm (L) x 13mm (D) |
| Operating Frequency |
433.92mhz SAW Resonator Locked (+/- 75khz) |
| Transmission Modulation |
AM ASK |
| Transmission Security |
Keeloq™ Code Hopping Technology |
| Number of Channels |
4 (1 per Button) |
| RF Range |
30 metres maximum (Environment Dependant) |
| Wiegand Encoding |
26 bit Wiegand User ID embedded within Keeloq Data |
| |
(Encrypted) |
| Country of Manufacture |
Australia |
| Safety |
EMC Tested and Approved. CE and C-Tick Compliance |
| |
Complies with AS/NZS 4268:2003, AS/NZS 4251.1:1999 |
