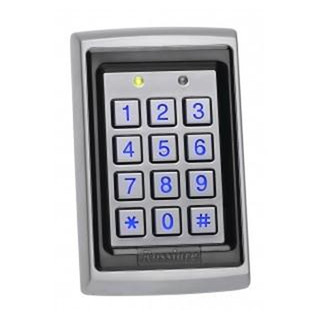

Description

Features

• Supports 4 to 8-Digit PIN credentials and 125KHz EM type RFID cards and tags
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible BLUE Backlit Keypad.
• 2 tri-colored LEDs and an integral sounder for programming and operation.
• User friendly menu, based on keypad, LED and sounder indicators.
• Back and Cover Optical tamper detection and output.
• Default operation as a multi-format reader (Wiegand 26 bits / Clock & Data)
• PS-x5 intelligent power supply family converting it into a 500-user stand-alone controller with secure relays
• 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 3×4 Matrix
• Supports Wiegand or Clock & Data Transmission formats.
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorised opening.
• 60 cm (23.6 in.) shielded interface cable.

Specifications

• Operating Voltage Range
  • Reader mode: 5 to 16 VDC from a standard controller
  • Controller mode: PS-x25T series intelligent power supplies
• Input Current: Standby: 90 mA at 12 VDC Maximum: 130 mA at 16 VDC
• Proximity Card Reader
  • Maximum read range: 45 mm (1.77 in.)
  • Modulation: ASK at 125 kHz
  • Compatible cards: All 26-Bit EM cards
• Tamper: Optical back tamper sensor, O.C. active low, 32 mA max. sink current
• Keypad: 3×4 keys for local programming and 4- to 8-digit PIN codes entry
• Audio/Visual: Two tri-color LED indicators, built-in buzzer
• Operating Environment: All weather, indoor and outdoor use, meets IP65
• Operating Temperature: -35°C to 66°C (-31°F to 151°F)
• Operating Humidity: 0 to 95%
• LED Control: Dry contact, N.O.
• Facility Code: Programmable
• Read Card Format: Selectable Wiegand 26-Bit or Clock & Data
• PIN Code Formats: 8 selectable formats, from 1- to 8-digit length PIN codes
• Dimensions: 120 x 76 x 21 mm (4.72 x 3 x 0.83 in.)
• Weight: 480 g (1.05 lbs)
